core

A transparent, concise machine learning framework in JAX inspired by miniai from fastai/course22p2 and optimized for efficient TPU usage.

import torch
from torchvision import datasets, transforms
import matplotlib as mpl
from lucidlearn.nn import make_conv2d, make_layernorm2d, make_squeeze, make_linear
random_key = jax.random.key(42)

Visualization Functions

def chunks(x, sz):
  for i in range(0, len(x), sz): yield x[i:i+sz]

def show_data(fashion_image, label=None, is_1d=False):
    if isinstance(fashion_image, tuple):
        fig, ax = plt.subplots(1, len(fashion_image), figsize=(9, 3))
        for i, x in enumerate(fashion_image):
            ax[i].imshow(x)
            ax[i].axis('off');
        plt.show()
    else:
        mpl.rcParams['image.cmap'] = 'gray'
        if label is not None:
            plt.title(f"{idx_to_class[label.item()]}")
        if is_1d==True:
            plt.imshow(list(chunks(fashion_image, 28)));
        else:
            plt.imshow(fashion_image);
        plt.axis('off');

Load Fashion-MNIST

train_data = datasets.FashionMNIST(root="./data", train=True, download=True, transform=transforms.ToTensor())
test_data = datasets.FashionMNIST(root="./data", train=False, download=True, transform=transforms.ToTensor())
x_train_all = train_data.data[:, None, :, :]/255
y_train_all = train_data.targets

rand_idx = torch.randperm(x_train_all.shape[0])
x_train = x_train_all[rand_idx[:50_000]]
train_mean = x_train.mean()
train_std = x_train.std()

x_train = jnp.array((x_train - train_mean) / train_std)
y_train = jnp.array(y_train_all[rand_idx[:50_000]])
x_valid = jnp.array((x_train_all[rand_idx[50_000:]] - train_mean) / train_std)
y_valid = jnp.array(y_train_all[rand_idx[50_000:]])
x_test = jnp.array((test_data.data[:, None, :, :]/255 - train_mean) / train_std)
y_test = jnp.array(test_data.targets)

x_train.shape, y_train.shape, x_valid.shape, y_valid.shape, x_test.shape, y_test.shape,

((50000, 1, 28, 28),
 (50000,),
 (10000, 1, 28, 28),
 (10000,),
 (10000, 1, 28, 28),
 (10000,))

idx_to_class = {value: key for key, value in train_data.class_to_idx.items()}
num_classes = len(idx_to_class)
idx_to_class, num_classes

({0: 'T-shirt/top',
  1: 'Trouser',
  2: 'Pullover',
  3: 'Dress',
  4: 'Coat',
  5: 'Sandal',
  6: 'Shirt',
  7: 'Sneaker',
  8: 'Bag',
  9: 'Ankle boot'},
 10)

DataLoaders

---

source

Dataset

def Dataset(
    x, y
):

Combines features and lables in a dataset.

train_ds = Dataset(x_train, y_train)
valid_ds = Dataset(x_valid, y_valid)
test_ds = Dataset(x_test, y_test)

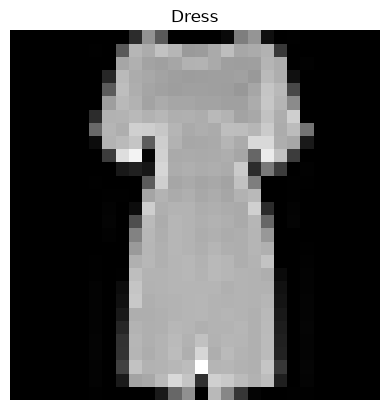

show_data(x_train[0].squeeze(), y_train[0])

---

source

DataLoader

def DataLoader(
    dataset, batch_size:int=32, drop_last:bool=False, shuffle:bool=True, random_key:NoneType=None
):

Returns iterable batches from a dataset

test_train_ds = Dataset(x_train[:-1], y_train[:-1])

test_dataloader = DataLoader(test_train_ds, batch_size = 2)
test_generator = iter(test_dataloader)
next(test_generator)

(Array([[[[-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          ...,
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199]]],


        [[[-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          ...,
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199]]]], dtype=float32),
 Array([7, 0], dtype=int32))

len(test_dataloader)

25000

test_dataloader = DataLoader(test_train_ds, batch_size = 2, drop_last=True)
test_generator = iter(test_dataloader)
next(test_generator)

(Array([[[[-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          ...,
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199]]],


        [[[-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          ...,
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199],
          [-0.8108199, -0.8108199, -0.8108199, ..., -0.8108199,
           -0.8108199, -0.8108199]]]], dtype=float32),
 Array([7, 0], dtype=int32))

len(test_dataloader)

24999

bs = 32

train_dl = DataLoader(train_ds, batch_size=bs, shuffle=True)
valid_dl = DataLoader(valid_ds, batch_size=bs, shuffle=True)
test_dl = DataLoader(test_ds, batch_size=bs, shuffle=False)

---

source

DataLoaders

def DataLoaders(
    *dls
):

Combines training and validation data in a DataLoaders object that can be passed to a learner.

dls = DataLoaders(train_dl, valid_dl)
dls.train, dls.valid

(<__main__.DataLoader>,
 <__main__.DataLoader>)

one_batch = next(iter(dls.train))[0]
one_batch.shape

(32, 1, 28, 28)

Learner and Callbacks

---

source

CancelEpochException

def CancelEpochException(
    *args, **kwargs
):

Common base class for all non-exit exceptions.

---

source

CancelBatchException

def CancelBatchException(
    *args, **kwargs
):

Common base class for all non-exit exceptions.

---

source

CancelFitException

def CancelFitException(
    *args, **kwargs
):

Common base class for all non-exit exceptions.

---

source

with_cbs

def with_cbs(
    nm
):

---

source

run_cbs

def run_cbs(
    cbs, method_nm, learn:NoneType=None
):

---

source

Learner

def Learner(
    model, params, dls:tuple=(0,), loss_func:function=softmax_cross_entropy_with_integer_labels, lr:float=0.001,
    cbs:NoneType=None, opt:function=sgd
):

---

source

Callback

def Callback(
    *args, **kwargs
):

---

source

DeviceParallelCB

def DeviceParallelCB(
    preload_data:bool=False
):

---

source

accuracy

def accuracy(
    preds, targs
):

---

source

MetricsCB

def MetricsCB(
    *ms, **metrics
):

---

source

OneCycleCB

def OneCycleCB(
    pct_start:float=0.3, div:int=25, final_div:float=10000.0
):

---

source

LRRecorderCB

def LRRecorderCB():

---

source

LossRecorderCB

def LossRecorderCB():

---

source

ProgressCB

def ProgressCB(
    n:int=50
):

---

source

PredsCB

def PredsCB(
    *args, **kwargs
):

Advanced Model Factory

---

source

make_model

def make_model(
    key, model_dict, act_fn:jax._src.custom_derivatives.custom_jvp=relu, bias:bool=True
):

model_dict = {'Conv2d_1':    {'make_fn': make_conv2d,     'args': (8, 1),      'kwargs': {'strides': (2, 2), 'act': True}},
              'LayerNorm_1': {'make_fn': make_layernorm2d,  'args': (8,),         'kwargs': {'ndims': 4}},
              'Conv2d_2':    {'make_fn': make_conv2d,     'args': (16, 8),     'kwargs': {'strides': (2, 2), 'act': True}},
              'LayerNorm_2': {'make_fn': make_layernorm2d,  'args': (16,),         'kwargs': {'ndims': 4}},
              'Conv2d_3':    {'make_fn': make_conv2d,     'args': (32, 16),    'kwargs': {'padding': 'VALID', 'strides': (2, 2), 'act': True}},
              'LayerNorm_3': {'make_fn': make_layernorm2d,  'args': (32,),         'kwargs': {'ndims': 4}},
              'Conv2d_4':    {'make_fn': make_conv2d,     'args': (64, 32),    'kwargs': {'padding': 'VALID', 'strides': (1, 1), 'act': True}},
              'LayerNorm_4': {'make_fn': make_layernorm2d,  'args': (64,),         'kwargs': {'ndims': 4}},
              'Squeeze' :    {'make_fn': make_squeeze,    'args': (),          'kwargs': {'dims': (2, 3)}},
              'Linear_1':    {'make_fn': make_linear,     'args': (64, num_classes), 'kwargs': {'act': False}}}

params, model = make_model(random_key, model_dict)

sum(p.size for p in jax.tree_util.tree_leaves(params))

25274

model(params, one_batch).shape

(32, 10)

Training

dls = DataLoaders(train_dl, valid_dl)
params, model = make_model(random_key, model_dict)
metrics = MetricsCB(accuracy)
lr_rec = LRRecorderCB()
loss_rec = LossRecorderCB()
cbs = [DeviceParallelCB(), OneCycleCB(), metrics, lr_rec, loss_rec]
learn = Learner(model, params, dls, loss_func=optax.softmax_cross_entropy_with_integer_labels, lr=0.01, cbs=cbs, opt=optax.adamw)

learn.fit(5)

Epoch       accuracy        loss    Mode
----------------------------------------
0             0.8136      0.5246   train
0             0.8400      0.4363    eval
1             0.8671      0.3640   train
1             0.8663      0.3555    eval
2             0.8870      0.3031   train
2             0.8876      0.3147    eval
3             0.9078      0.2482   train
3             0.9021      0.2663    eval
4             0.9287      0.1894   train
4             0.9114      0.2489    eval

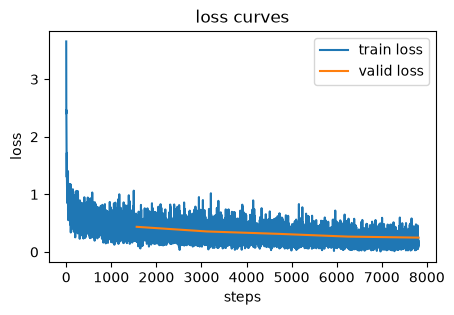

loss_rec.plot()
